Low Speed Nema 34 Closed Loop Stepper Motor 8.5N.M Holding Torque Stepper Driver With Encoder For CNC Machine

Product Categories
CHANGZHOU JKONGMOTOR CO.,LTD
Contact Now

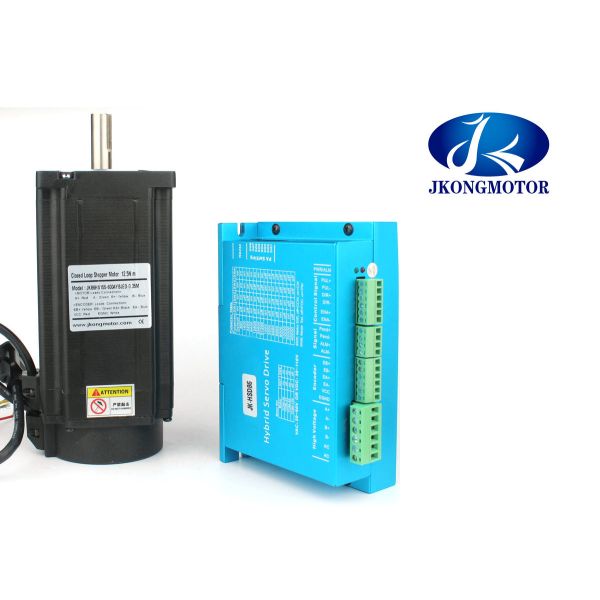

Low Speed Nema 34 Closed Loop Stepper Motor 8.5N.M Holding Torque Stepper Driver With Encoder For CNC Machine

  • 1
  • 2
  • 3

Brand Name : Jkongmotor

Model Number : JK86HS115-6004YBJED-0.35M

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$83~US$100

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Shaft : 14mm D shaft

Leads : 4

Current : 6.0A

Holding Torque : 8.5N.m

Motor Length : 115

Encoder : 1000 pluse

Contact Now

8.5N.m Holding Torque Nema34 Closed Loop Stepper Motor System /cnc servo motor


1. Genaral Specification of stepper motor driver kit:

Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 820VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 220N (20mm from the flange)
Max. axial force 60N


2. Electrical Specification of closed loop stepper motor kit:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °) (L)mm A Ω mH N.m No. Kg.cm g.cm Kg
JK86HS115-6004 YBJED-0.35M 1.8 115 6 0.36 3.8 8.5 4 2.4 2700 4.3

3. Matching Stepper motor Driver: JK-HSD86

  • Step and direction control
  • Closed position loop for no loss of movement synchronization
  • Operating voltage: 20-80 VDC
  • Load based output current of 0.1 - 10 A
  • High torque at starting and low speed
  • No torque reservation
  • High stiffness at standstill
  • Significantly reduced motor heating
  • Smooth motor movement and extra low motor noise
  • Quick response, no delay and zero settling time
  • No loss of steps; no hunting; no overshooting
  • Plug-and-play and no tuning

4. Drawing of 8.5N.m nema 34 closed loop stepper motor:


Low Speed Nema 34 Closed Loop Stepper Motor 8.5N.M Holding Torque Stepper Driver With Encoder For CNC Machine
